519 RS6/3V

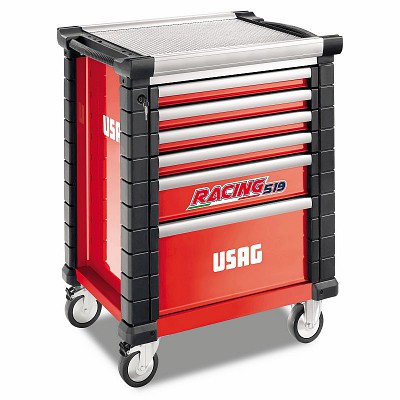

RACING ROLLER CABINET - 6 DRAWERS (EMPTY)

Work top in non-scratch Aluminium (2 mm)

15 mm wooden layer integrated under the worktop

Soft touch double handle integrated in the worktop

Innovative rail system integrated in the worktop to fit accessories (519 ACT range)

Shock resistant profiles on sides and drawers

Fully opening drawers on telescopic ball-bearing slides

Drawers slide with soft closing system

Opportunity to store 3 modules in each drawer

Drawers with anodized Aluminium handles

Quick drawer opening system

Oil-proof rubber mats inside

Centralized locking system

Side panels arranged for mounting optional accessories (516 AC)

Oil-proof rubber wheels (Ø 125 mm): two fixed and two swivelling (both with brake)

Sheet steel casing and drawers with epoxy process, colour red RAL 3020

Maximum loading capacity: 900 Kg

Drawer loading capacity: 40 Kg

Inside dimensions:

4 drawers 570x420x60 mm

1 drawer 570x420x130 mm

1 drawer 570x420x270 mm

519   RS6/3V
CodeLxPxH mmWeight   kgQuantity   for packaging
U05190506814x575x1005751
