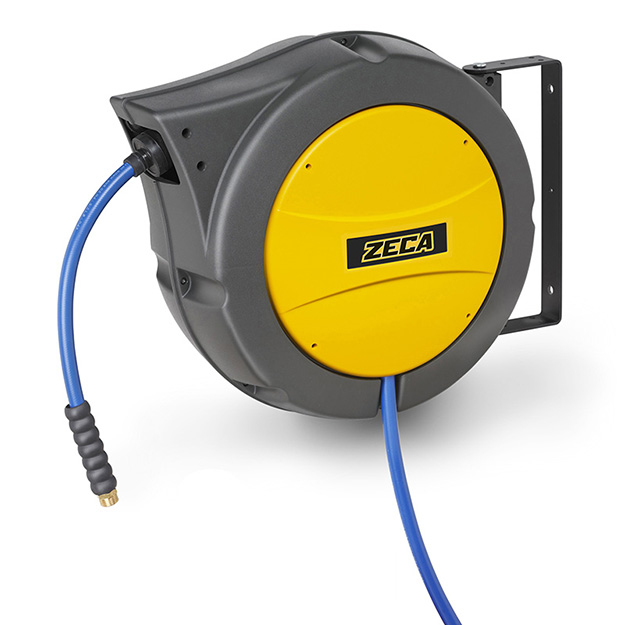

Technopolymer structure.
Metal fixing bracket, adjustable
Automatic device to stop the tube at the desired length, which can be disconnected if necessary.
ATEX CERTIFICATION available for models AM86/10 and AM86/13
In accordance with Directive 2014/34/EU EC marking EX II 2 GD c IIB T6/T85° C X Type Examination Certificate Number IMQ 15 ATEX 002X in accordance with Standards EN 13463-1: 2009 | EN 13463-5: 2011
TUBO PU FOOD CERTIFICATE for models AM86/13 FD and AM86/AGRI
Tube certified according to EU REG. 1935/2004 and EU REG. EU 10/2011 suitable for contact with food. Not suitable for the passage of food liquids, according to Directive 2014/34/EU
| Art. | Hose internal diameter (mm) | Hose length (m) | Maximum pressure | Fluid type | Tube colour |
| AM86/10 | 10 mm (3/8") | 25 | 15 bar | Air - Water | BLUE |
| AM86/10 PVC | 10 mm (3/8") | 20 | 15 bar | Air - Water | BLUE |
| AM86/10 NBR | 10 mm (3/8") | 18 | 15 bar | Air - Water | BLACK |
| AM86/13 | 12.5 mm (1/2") | 16 | 15 bar | Air - Water | BLUE |
| AM86/13 PVC | 12.5 mm (1/2") | 12 | 15 bar | Air - Water | BLUE |
| AM86/13 NBR | 12.5 mm (1/2") | 12 | 15 bar | Air - Water | BLACK |
| AM86/13 FD | 12.5 mm (1/2") | 12 | 15 bar | Air - Water | GREEN |
| AM86/AGRI | 12.5 mm (1/2") | 18 | 6 bar (0.6 Mpa) | water | YELLOW |
